04 — Full flight: flapping to gliding transition¶

This notebook analyses the full flight trajectory of Toothless at 9 m, capturing the continuous transition from flapping to gliding. Unlike the previous notebooks, which examined steady-state flapping only, the data here span take-off through mid-flight flapping to a terminal glide.

We fit DMD to the entire trajectory, then separately to the gliding phase alone, to examine how mode structure changes when flapping ceases.

In [1]:

%load_ext autoreload
%autoreload 2
%matplotlib widget
%config InlineBackend.figure_format='svg'

import matplotlib.pyplot as plt
import numpy as np
from IPython.display import SVG, display
from morphing_birds import Hawk3D, animate, animate_plotly_compare

from birddmd import (
    plot_mode_dynamics,
    reconstruct,
    run_dmd,
)

%load_ext autoreload %autoreload 2 %matplotlib widget %config InlineBackend.figure_format='svg' import matplotlib.pyplot as plt import numpy as np from IPython.display import SVG, display from morphing_birds import Hawk3D, animate, animate_plotly_compare from birddmd import ( plot_mode_dynamics, reconstruct, run_dmd, )

In [2]:

hawk3d = Hawk3D("../data/mean_hawk_shape.csv")
average_shape = hawk3d.markers
n_markers = 8

hawk3d = Hawk3D("../data/mean_hawk_shape.csv") average_shape = hawk3d.markers n_markers = 8

1 — Full flight DMD¶

The full-flight data cover roughly 0.1–1.35 s, binned from repeated sequences of Toothless at 9 m. The shaded overview plot below shows mean ± s.d. across sequences for each marker coordinate. The transition from high-amplitude flapping to low-amplitude gliding is visible around 0.7–0.8 s.

The preparation script (scripts/prepare_full_flight.py) bins the raw full-flight and gliding sequences. Expand the cell below to review the pipeline.

In [3]:

# %load scripts/prepare_full_flight.py

# %load scripts/prepare_full_flight.py

In [4]:

loaded_data = np.load("../data/processed/Toothless_full_flight_binned.npz")
markers_full, times_full = loaded_data["markers_full"], loaded_data["times_full"]

print(
    f"Full flight: {markers_full.shape[0]} frames, "
    f"{times_full[0]:.2f}s to {times_full[-1]:.2f}s"
)

loaded_data = np.load("../data/processed/Toothless_full_flight_binned.npz") markers_full, times_full = loaded_data["markers_full"], loaded_data["times_full"] print( f"Full flight: {markers_full.shape[0]} frames, " f"{times_full[0]:.2f}s to {times_full[-1]:.2f}s" )

Full flight: 250 frames, 0.10s to 1.35s

In [5]:

display(SVG("figures/04_full_flight_overview.svg"))

display(SVG("figures/04_full_flight_overview.svg"))

In [6]:

N_MODES_FULL = 4
D = 2

result_full = run_dmd(
    data=markers_full,
    times=times_full,
    n_modes=N_MODES_FULL,
    d=D,
    eig_constraints={"conjugate_pairs"},
    n_markers=n_markers,
    average_shape=average_shape,
    verbose=True,
)

fig = plot_mode_dynamics(
    times_full[1:],
    result_full,
    axes_visible=True,
)
fig.savefig("figures/04_full_flight_dynamics.svg", format="svg")

N_MODES_FULL = 4 D = 2 result_full = run_dmd( data=markers_full, times=times_full, n_modes=N_MODES_FULL, d=D, eig_constraints={"conjugate_pairs"}, n_markers=n_markers, average_shape=average_shape, verbose=True, ) fig = plot_mode_dynamics( times_full[1:], result_full, axes_visible=True, ) fig.savefig("figures/04_full_flight_dynamics.svg", format="svg")

Running DMD with 4 modes, delay d=2
Input shape: (250, 24)
Number of variables in DMD results: 48
Complex Eigenvalues (log): [-2.038+28.638j -2.038-28.638j  0.78  +1.419j  0.78  -1.419j]
Number of modes in Psi: 4
Pair 1 (0,1) Frequency: 4.56 Hz | f=4.56 Hz | λ=-2.038+28.638j
Pair 2 (2,3) Frequency: 0.23 Hz | f=0.23 Hz | λ=0.780+1.419j

Figure

In [7]:

# Reconstruct each conjugate pair separately
conjugate_pairs = result_full.conjugate_pairs
pair_labels = ["Flapping", "Glide & Landing"]
pair_colours = ["#57B7B0", "#DF5D99"]

mode_keypoints = []
for pair_idx in range(len(conjugate_pairs)):
    kp = reconstruct(result_full, times=times_full[1:], pairs=[pair_idx])
    mode_keypoints.append(kp)
    i, j = conjugate_pairs[pair_idx]
    print(f"Pair {pair_idx + 1} ({pair_labels[pair_idx]}): modes ({i},{j})")

# Reconstruct each conjugate pair separately conjugate_pairs = result_full.conjugate_pairs pair_labels = ["Flapping", "Glide & Landing"] pair_colours = ["#57B7B0", "#DF5D99"] mode_keypoints = [] for pair_idx in range(len(conjugate_pairs)): kp = reconstruct(result_full, times=times_full[1:], pairs=[pair_idx]) mode_keypoints.append(kp) i, j = conjugate_pairs[pair_idx] print(f"Pair {pair_idx + 1} ({pair_labels[pair_idx]}): modes ({i},{j})")

Pair 1 (Flapping): modes (0,1)
Pair 2 (Glide & Landing): modes (2,3)

In [8]:

# # Save each as a gif
# for pair_idx, (kp, label, colour) in enumerate(
#     zip(mode_keypoints, pair_labels, pair_colours)
# ):
#     ani = animate(hawk3d, kp, colour=colour, az=50, el=30)
#     _ = ani.save(
#         f"figures/04_full_modes_{pair_idx}.gif",
#         writer="Pillow", fps=40, dpi=300,
#     )
#     print("Saved GIF")

# # Save each as a gif # for pair_idx, (kp, label, colour) in enumerate( # zip(mode_keypoints, pair_labels, pair_colours) # ): # ani = animate(hawk3d, kp, colour=colour, az=50, el=30) # _ = ani.save( # f"figures/04_full_modes_{pair_idx}.gif", # writer="Pillow", fps=40, dpi=300, # ) # print("Saved GIF")

In [9]:

# hawk3d = Hawk3D("../data/mean_hawk_shape.csv")

# animate_plotly_compare(
#     hawk3d,
#     keypoints_frames_list=mode_keypoints,
#     colours=pair_colours,
# )

# hawk3d = Hawk3D("../data/mean_hawk_shape.csv") # animate_plotly_compare( # hawk3d, # keypoints_frames_list=mode_keypoints, # colours=pair_colours, # )

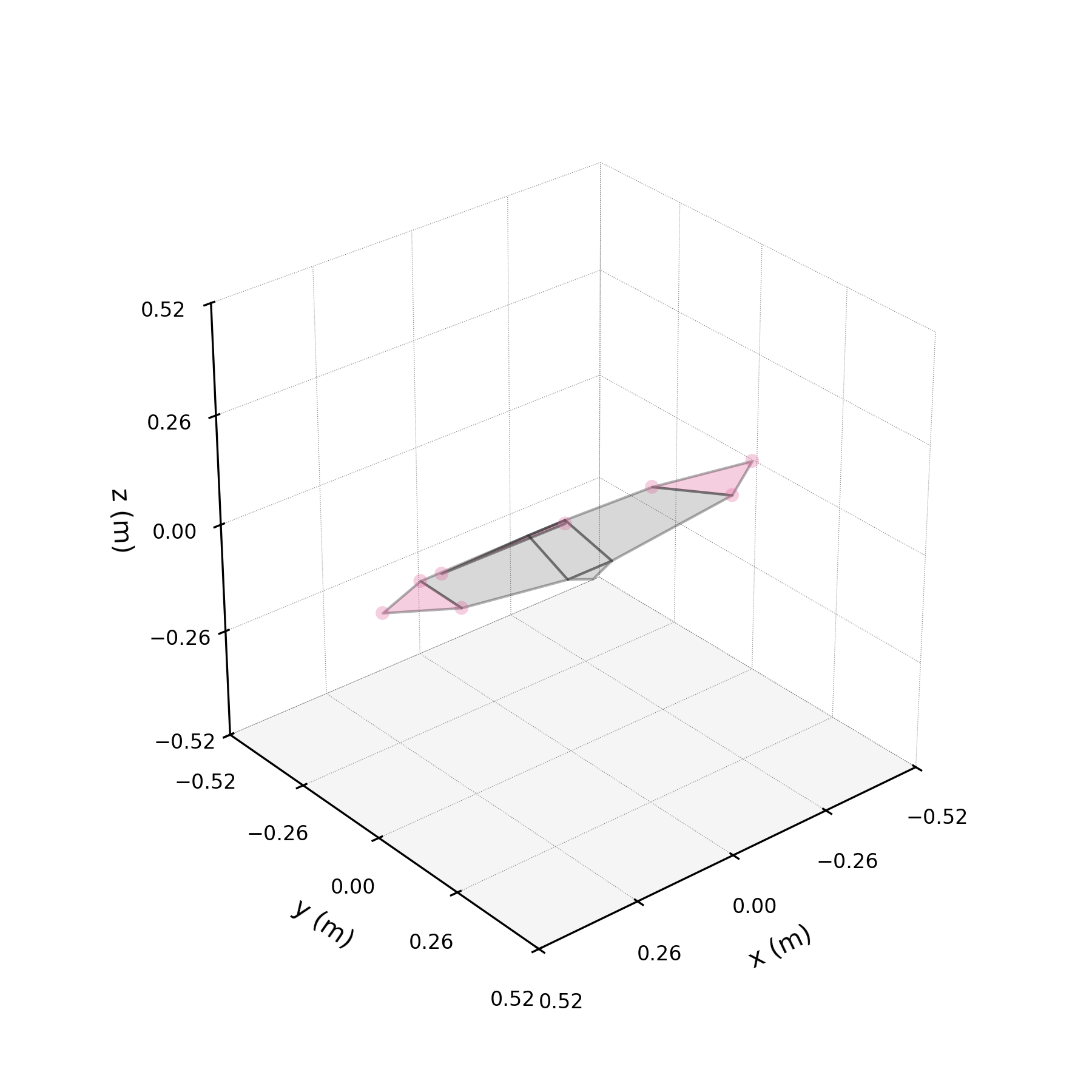

2 — Gliding-only DMD¶
